MJ-NB3All-ceramic rod-pin nano-sand mill

(10μm~50nm)

The whole grinding chamber is made of all-ceramic materials. The optimized nanorod pin machine has higher efficiency and better grinding effect, especially for the hard powder slurry, with a very narrow particle size distribution. This equipment can be equipped with corresponding cavity material and corresponding mechanical seal material for different oily and water-based slurry, with good versatility.

  • Characteristic
  • Parameter
  • Materials
  • Application

Specific characteristics

The mechanical seal can withstand 6kg pressure when running at high speed

Full ceramic core allows materials to be ground without metal pollution

Main engine speed 0-3000 rpm is controlled by frequency converter

The particle size distribution is very narrow during efficient grinding

Touch screen control panel parameters can be set according to user requirements

Grinding fineness range from micron to nanometer

Can efficiently and stably use grinding media of 0.1mm and above

Parameter

ModelPower(KW)Volume(L)Abrasive(mm)CapacitySize(mm)
MJ-NB3L113≥0.110-100L/H1300L*710W*1600H
MJ-NB6L156≥0.150-300L/H1300L*710W*1600H
MJ-NB10L2210≥0.1100-500L/H1430L*860W*1780H
MJ-NB20L3020≥0.1200-800L/H1430L*860W*1780H
MJ-NB30L4530≥0.1300-1200L/H1680L*1100W*1600H
MJ-NB60L7560≥0.1500-2000L/H2310L*1280W*2150H
MJ-NB100L110100≥0.11000-3000L/H2610L*1380W*2250H
MJ-NB150L160150≥0.11500-5000L/H2810L*1580W*2650H

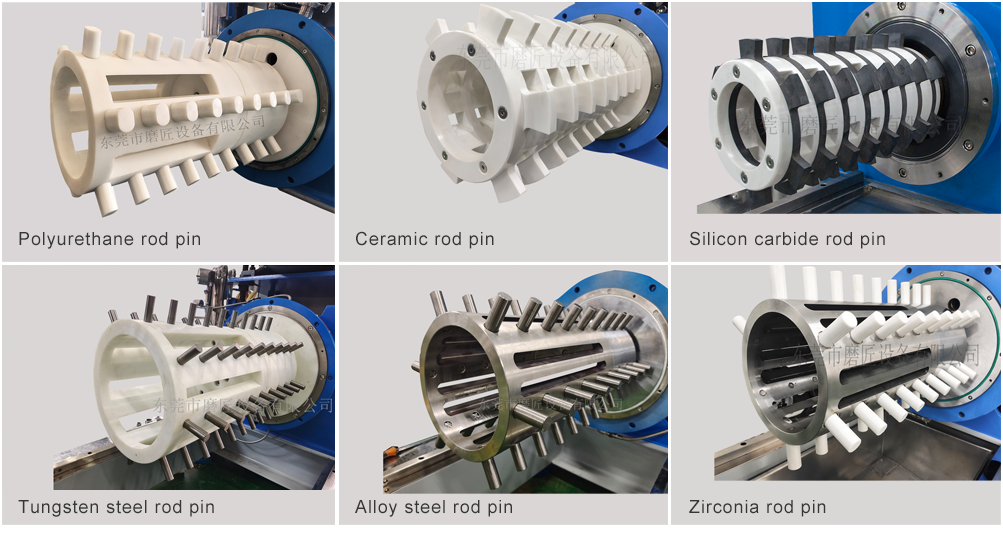

Materials


Application

Paint and ink: water-based nano color paste, ink color paste, silica gel color paste, paint ink

Industrial coatings: water-based industrial finish, automobile repair paint, container paint, mechanical finish

Printing ink: thermal transfer ink, inkjet ink, pigment ink, ceramic ink, UV ink

Printing materials: flexographic printing ink, gravure printing ink, carton ink, thermosensitive paper pulping

Coating slurry: nano-alumina slurry, PVDF slurry, zinc dioxide slurry, magnesium hydroxide

Battery materials: carbon nanotubes, graphene, lithium iron phosphate, nano silicon oxide, conductive carbon black

Other industries: nano-barium sulfate, chocolate, water-based paint additives, ATO, MLCC
